Galvanized Steel Interlocked Oval Pipe Roll Forming Machine

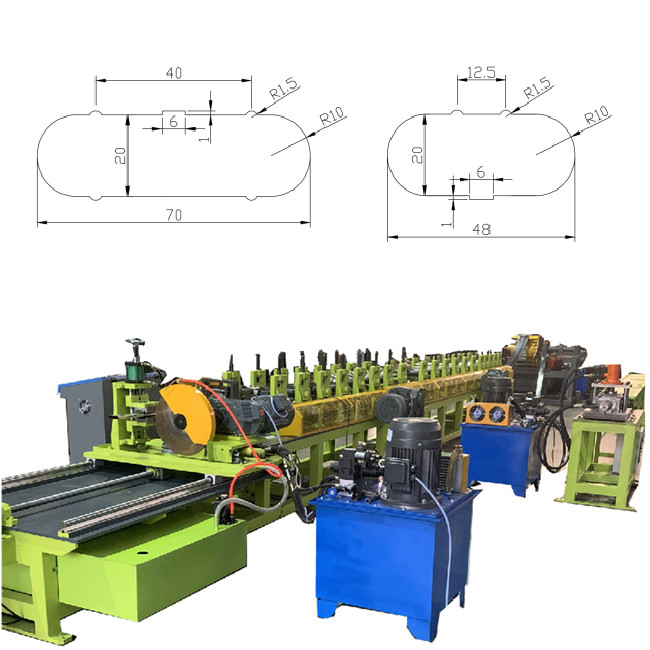

Großes Bild : Galvanized Steel Interlocked Oval Pipe Roll Forming Machine

Produktdetails:

Herkunftsort:	CHINA
Markenname:	ZTRFM
Zertifizierung:	CE. SGS
Modellnummer:	Rohr-Walzwerk

Zahlung und Versand AGB:

Min Bestellmenge:	1 Set
Preis:	35000 USD
Verpackung Informationen:	Nude-Paket mit Anti-Öl
Lieferzeit:	60 Arbeitstage
Zahlungsbedingungen:	L/c, d/a, d/p, t/t
Versorgungsmaterial-Fähigkeit:	30 Set pro Monat

Kontakt

Galvanized Steel Interlocked Oval Pipe Roll Forming Machine

Beschreibung

Rollstation:	24 Rollenstation	Materialstärke:	1.2mm maximal
WELLE:	80 mm	Geschwindigkeit:	20 Meter pro Minute
Decoiler:	Optional	Rahmen:	Optional
Scheren:	ScheibenServoscheren	Leistung:	7,5 kW
Hervorheben:	galvanized steel roll forming machine , interlocked oval pipe machine , steel pipe roll forming equipment

Galvanized Steel Interlocked Oval Pipe Roll Forming Machine

Specialized for Electric Conduits & Wiring Ducts

Our Interlocked Oval Pipe Roll Forming Machine is engineered for precision and efficiency in mass-producing thin-walled oval pipes for electric conduits or wiring ducting. Using the roll forming principle, it creates interlocked oval tubes (no welding required for thin materials) and integrates key functions like necking for easy tube connection—ideal for projects demanding reliable, seamless pipe structures.

Core Application: Oval Pipes for Electric Conduits & Wiring Ducts

The interlocked oval pipes produced by this machine serve two critical roles in electrical systems:

Electric Conduits: Protect electrical wires from external damage (e.g., impact, moisture) with a closed, interlocked structure that ensures long-term safety.
Electric Wiring Ducts: Organize and route wiring in industrial or commercial settings, leveraging the oval shape for space-saving installation and easy access.

We've prepared detailed drawing profiles of the oval tubes for your reference—contact us to check if the dimensions align with your electrical project needs.

Full Machine Configuration: From Decoiling to Finished Pipe

The Interlocked Oval Pipe Roll Forming Machine integrates all components required for end-to-end oval pipe production:

3TON Manual Decoiler: Unwinds raw material coils (galvanized or prepainted steel) steadily, providing a stable material supply.
Feeding Unit: Controls the speed and alignment of raw material feeding, with manual operation support for easy adjustments.
Cooling System: Prevents overheating of rollers and materials during forming, protecting machine components.
Roll Forming System: The heart of the machine, shaping flat metal sheets into oval profiles via precision rollers with an interlocked seam.
Transmission System: Drives the roll forming and feeding units synchronously, maintaining uniform forming speed.
Cutting System: Trims finished oval pipes to your desired length, ensuring consistent dimensions.
Control System: Centralizes operation of all components, simplifying parameter adjustments.
Run-Out Supporting Rack: Supports finished pipes as they exit the machine, preventing bending or damage.

Compatible Materials & Thickness Limits

Feature	Specification
Suitable Materials	Galvanized steel or prepainted steel (corrosion-resistant)
Interlock Applicable Thickness	0.3-1.2mm (no welding required)
Thickness Beyond 1.2mm	Requires pairing with welding system or secondary shaping machine

Key Customization: Fast-Change Design for Multi-Size Pipes

Our fast-change design allows for economical multi-size production:

Rollers and shafts are mounted on a dedicated base frame for easy size switching
Reduces investment in duplicate shared components
Available in both economic and high-quality configurations

Easy Tube Connection: Necking Machine for Secure Overlapping

Integrated necking machine enables seamless tube connections:

Reduces diameter of one tube end (with reinforcing ribs) for insertion
Creates tight, secure connections without additional fasteners
Simplifies installation and enhances structural stability

See the Entire Process: Request the Working Video

Customize to Your Needs

We can tailor the machine to your specific requirements for pipe dimensions, material thicknesses, or production needs. Contact our team for details on parameters, drawing profiles, or customization options.
